DownloadMotorData Hybrid is the premier OBD2 scan tool app for diagnosing Toyota and Lexus hybrid vehicles. This best-in-class car software utilizes OBD2, EOBD, and JOBD protocols for comprehensive diagnostics. Beyond simply reading and clearing trouble codes (DTCs), MotorData Hybrid allows you to monitor the health of your hybrid system, including the hybrid battery, inverter, gasoline engine, transmission, ABS, SRS, VSC, and air conditioning systems.

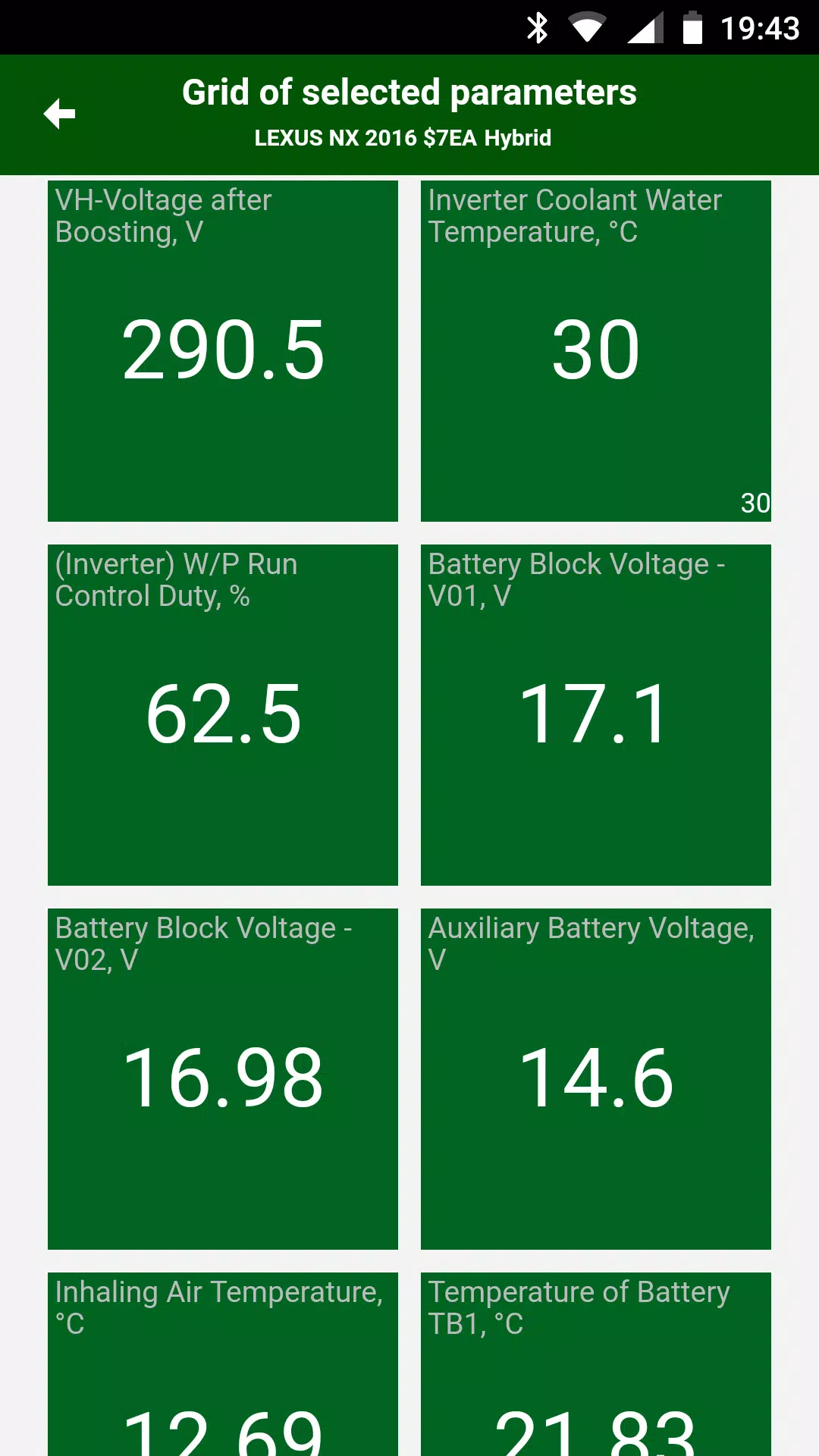

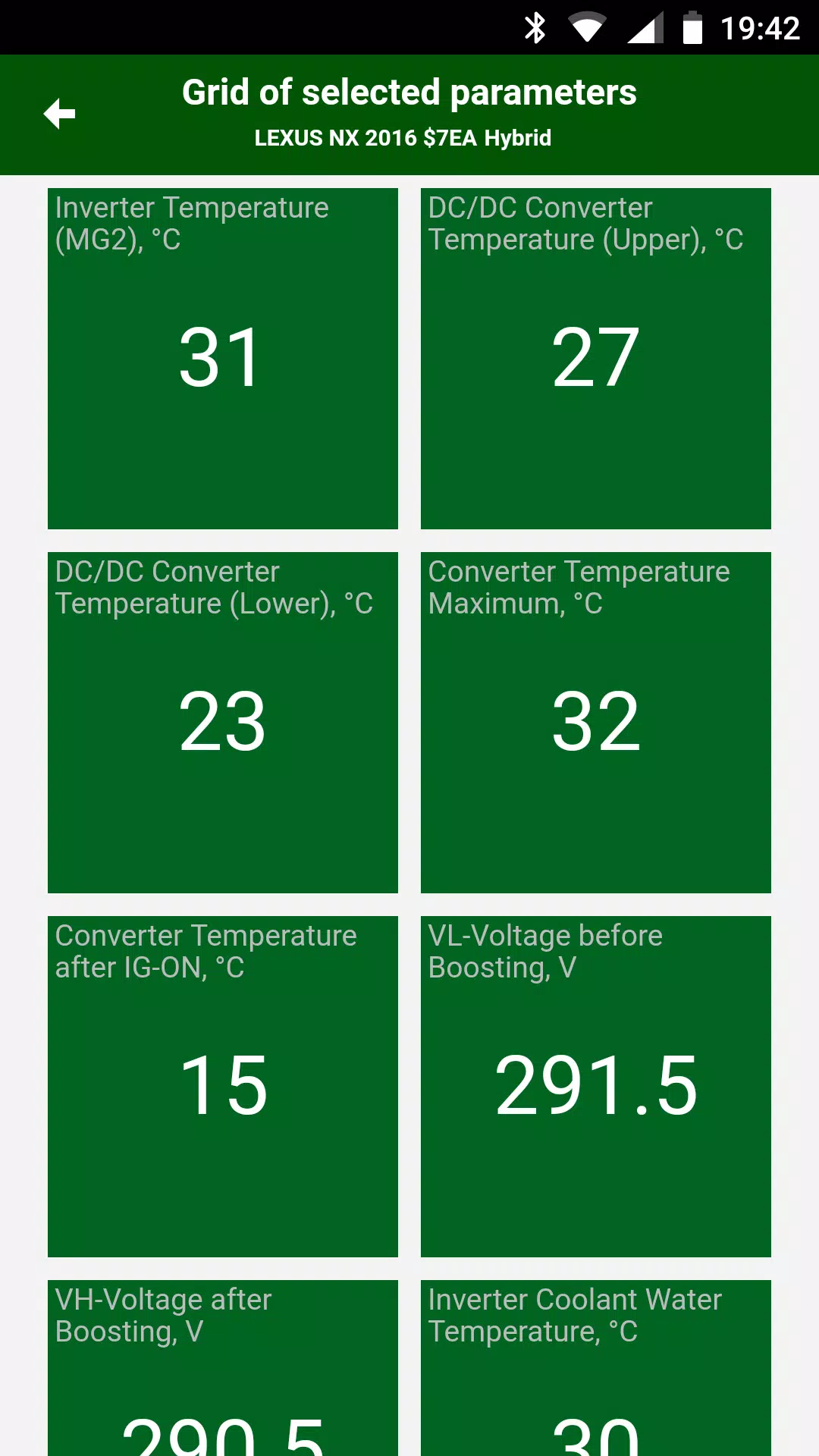

Real-time High-Voltage System Monitoring:
- High-voltage hybrid battery cell temperature
- Inverter, MG1, and MG2 temperatures
- HV battery diagnosis (SOC and Delta SOC)
- HV battery internal resistance
- HV battery cell voltage
The app also provides real-time data monitoring for engine and brake control systems, including speed, acceleration, RPM, temperature, pressure, oxygen sensor data, short-term and long-term fuel trims, torque sensor data, and other key vehicle characteristics. This data is presented in clear, easy-to-understand real-time graphs, allowing for immediate identification of potential issues. Proactive monitoring helps prevent costly hybrid powertrain repairs.

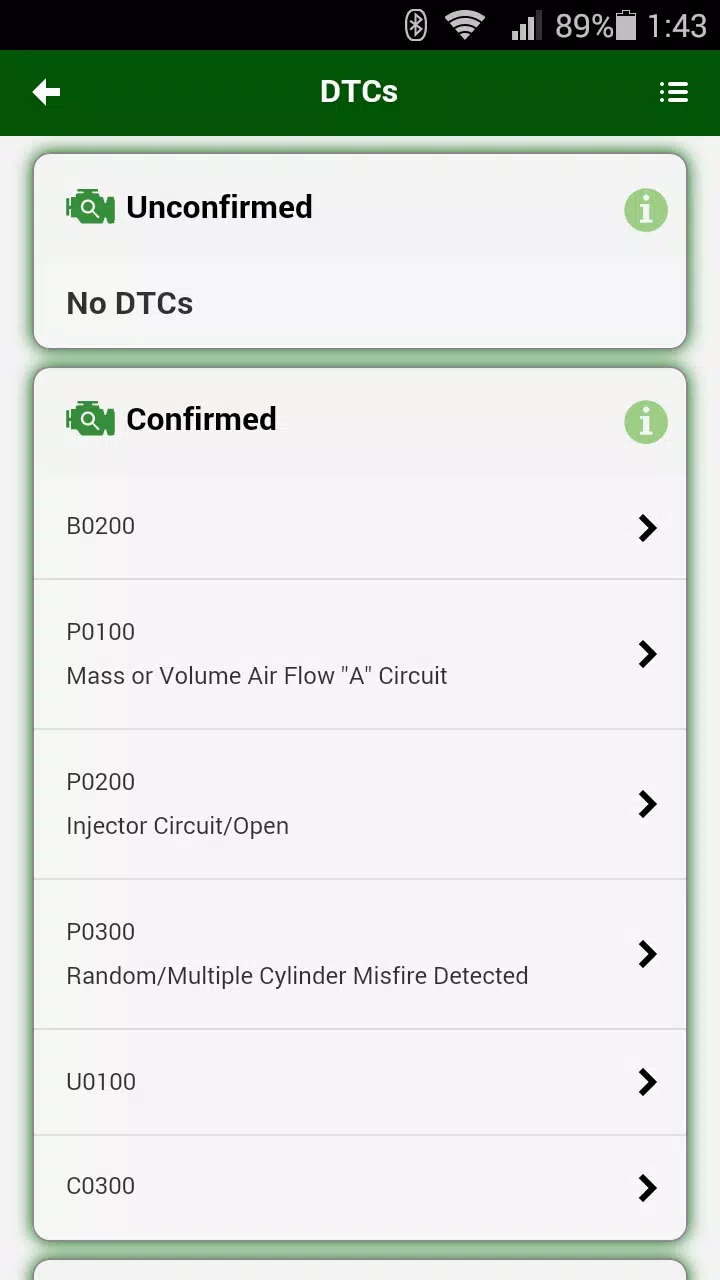

MotorData Hybrid also offers DTC reading and clearing capabilities, along with Freeze Frame data retrieval. A built-in database provides detailed descriptions of P0xxx and P2xxx trouble codes. Enhanced features, including detailed high-voltage system diagnostics, are unlocked via the 'Toyota (Lexus) + Hybrid' plugin (purchased separately). We recommend a free trial to ensure compatibility with your vehicle, ELM327 adapter, and mobile device before purchasing. Supported control units and parameters will be displayed, but some values will be hidden until the plugin is activated.
The 'Reference' plugin (paid) provides detailed descriptions of Toyota and Lexus hybrid vehicle warning and indicator lights—currently covering 147 unique lamps. This feature offers professional advice and simplifies maintenance for vehicles such as the Toyota Prius, Camry Hybrid, Highlander Hybrid, Estima Hybrid, Harrier Hybrid, and Lexus RX 400h/450h, among others.
Supported Toyota and Lexus Models: (A comprehensive list of supported models is provided below. Due to the length, it's been omitted from this summary to improve readability.)
Supported Adapters: OBD scan tools (Bluetooth mini, WiFi, ELM327) are supported. Note that correct operation with some v2.1 protocol adapters is not guaranteed.
Your feedback is valuable! Contact [email protected] with your vehicle details (make, model, and year) to help improve the app.
For professional diagnostic data on Japanese, Korean, Chinese, and Russian vehicles, visit http://motordata.net
What's New in Version 1.0.8.33 (Aug 25, 2020)
- User-configurable dashboard
- Live data head-up display mode
- Dark mode
- Share live data as CSV
Version 1.0.7.29: Increased ECU accessibility with the TOYOTA plugin.
